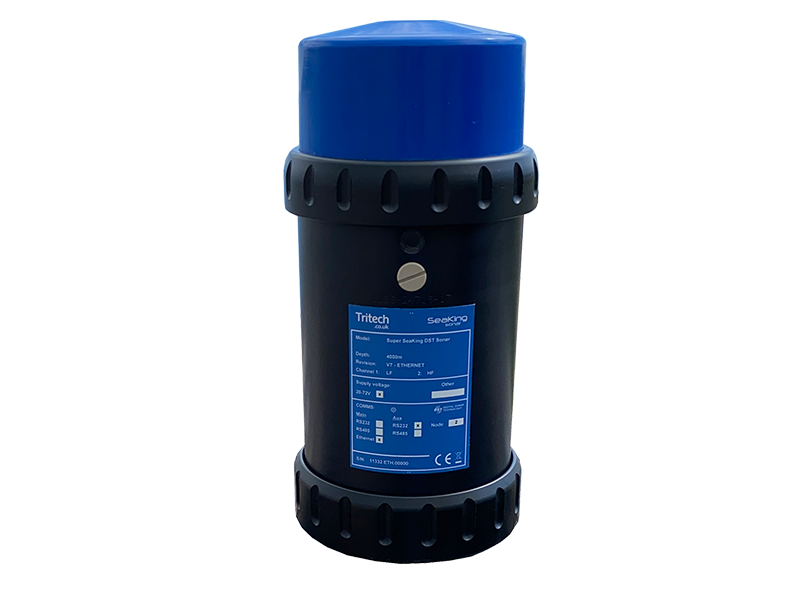

Tritech's Super SeaKing sonar is the ultimate mechanical scanning sonar. Utilising Digital Sonar Technology (DST) composite transducer and Compressed High Intensity Radar Pulse (CHIRP) technology, the Tritech Super SeaKing DST offers exceptional clarity and resolution as a dual frequency mechanical scanning sonar.
The SeaKing sonar is of modular transducer design and a longer-life slip ring assembly to the sonar to minimise the consequences of operational damage and improves on the SeaKing sonar’s reliability.
The Super SeaKing Sonar is the industry-standard obstacle avoidance sonar for larger ROVs and is so popular it can be found fitted to work-class ROV fleets around the world.
The Super SeaKing DST Sonar hosts two mechanically scanned imaging sonars in a single subsea pressure housing: a 325 kHz CHIRP sonar with a true operational range of up to 300 metres for long range target recognition and a 650 kHz CHIRP sonar for ultra-high definition images, other frequency options are available on request.
The SeaKing range of mechanical imaging sonars comprises the Super SeaKing, Super SeaPrince, MicronSonar and SeaKing Hammerhead. All products in the SeaKing family (or third-party products within the ArcNet communications link), can be run simultaneously, using the same processor and display; such as the Surface Control Unit (SCU) or a customer supplied PC or laptop.
Resources
Manuals, Datasheets, Software, etc.
Datasheet
Super SeaKing DSTManual
Super SeaKing DSTSTEP Files
Super Seaking DST V7Supplements
ARCNET & Serial Communication Settings Seanet Pro Remote Communications Product Guide 2023Technical Notices
Calibration Frequency GuidanceFAQs
My device shows as UNKNOWN in Seanet Setup. What does this mean?
This is nearly always an issue with the RS232 ground which is usually missing. Check for continuity on the copper sections between each end of the cable.
On the small chance it is not, then it is a RS485 device connected to an RS232 port.
This document will help get the basics sorted out - Serial Port Connection and Setup rev 1
Where can I find the calibration frequency for Tritech products?
The calibration frequency guidance document can be found under the technical notices in the Resources page. To go directly to them click on the link "Technical Notices"
Alternatively, the document can be accessed here: Calibration Frequency Guidance
