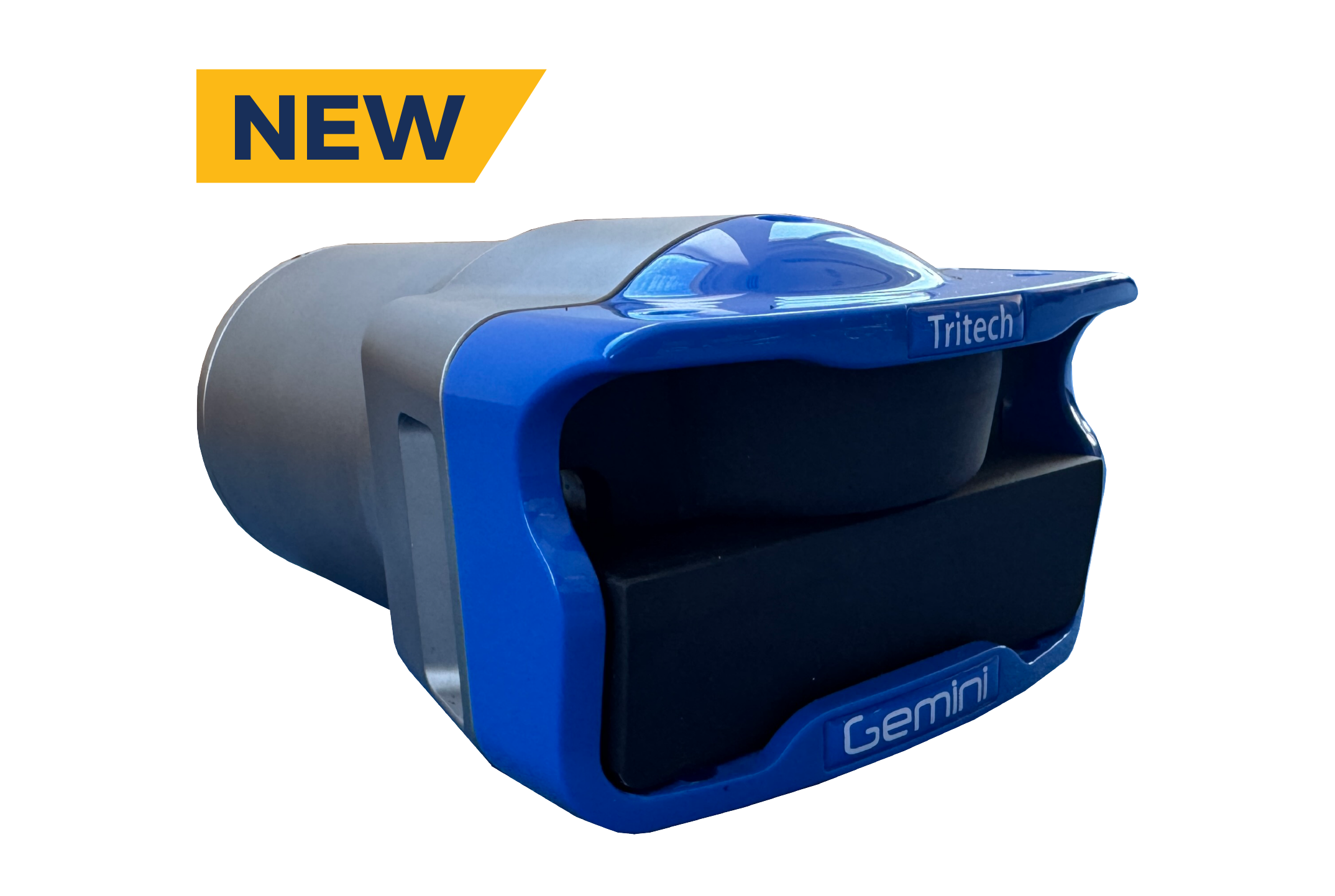

The Gemini 1200id is built on the same platform as the industry standard Gemini 720is sonar. It features, a wide 120° horizontal field of view when operating at 720kHz or 1200kHz frequencies and has improved attenuation of waterborne electrical noise for optimal imaging performance.
An integrated velocity-of-sound sensor ensures that a target is displayed to a high degree of positional accuracy. CHIRP processing provides improved target separation over longer ranges. The 1200id is fully compatible with Tritech’s software package, Genesis. This ensures improved user interaction and allows for control of multiple Tritech products from within one software package. Software development kits (SDK) are also available for Windows and Linux operation systems.
Product Comparison
Gemini 1200id
|
Gemini 1200ikd
|
MicronGemini 720s
|
|
|---|---|---|---|
| Operating Frequency | 720 kHz1200 kHz | 720 kHz1200 kHz | 720 kHz |
| Depth Rating | 4000 m | 500 m1000 m | 300 m750 m |
| Power Requirements | 16 - 27 W (range dependent) | 9.5 W - 27 W (range dependent) | 8.5 W |
| Supply Voltage | 19 to 74 V DC | 19 to 74 V DC | 12 to 48 V DC |
| Comms | Ethernet VDSL | Ethernet | Ethernet Serial (RS232 / RS485) |
| Material | Titanium | Aluminium | Aluminium |
| Maximum Range | 120 m50 m | 120 m50 m | 50 m |
| Horizontal beamwidth | 120° | 120° | 90° |
| Vertical beamwidth | 20° (tilted down 10°)12° (tilted down 10°) | 20°12° | 20° |
| Effective angular resolution | 0.25°0.12° | 0,25°12° | 0.7° |
| Range Resolution | 4 mm2.4 mm | 4 mm2.4 mm | 8 mm |
| Acoustic angular resolution | 1.0°0.6° | 1,0°0.6° | 2.34° |
| SDK | Yes | Yes | Yes |
| View | View |
New Gemini 1200id Imaging Sonar - 4000m Depth Rating
30 seconds
Tritech Factory Tour
2.05 Minutes
Resources
Manuals, Datasheets, Software, etc.
Datasheet
Gemini 1200idManual
Gemini 1200idSoftware
Genesis v1.10.53D Printing (STL Files)
1200kHz Gemini Printable Example Waveform 720kHz Gemini Printable Example WaveformFAQs
What is the difference between the Gemini 720is and the Gemini 1200id?
The new Gemini 1200id multibeam sonar operates at two acoustic frequencies, 720 kHz for long range target detection and lower resolution imaging, and 1200 kHz for enhanced high-resolution imaging. The Gemini 720is operates at only 720 kHz. The Gemini 1200id has the same physical size and connection interface as the Gemini 720is, enabling an easy and direct drop-in replacement path to upgrade.
Where can I find the calibration frequency for Tritech products?
The calibration frequency guidance document can be found under the technical notices in the Resources page. To go directly to them click on the link "Technical Notices"
Alternatively, the document can be accessed here: Calibration Frequency Guidance
